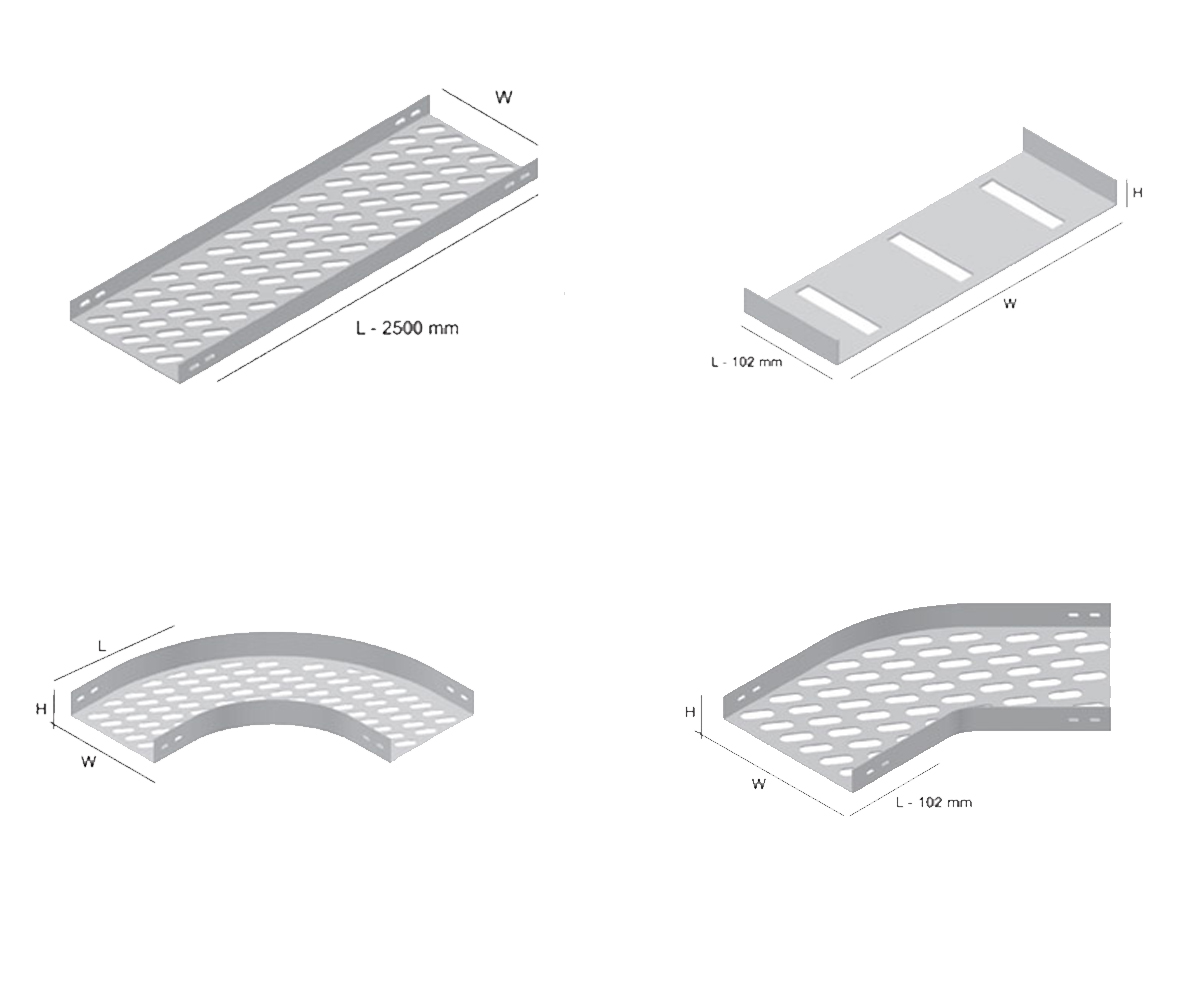

PERFORATED TYPE CABLETRAYS AND ACCESSORIES
Perforated Type Cable Tray are used to distribute cable and has been designed carefully keeping in mind industrial requirements. These trays are manufactured using top quality material and are available in various sizes. We can offer customized solution for all the products
These cable trays also available as Welded Type with high grade galvanized sheet and other materials such as painted and powder coated finish on mild steel. Perforated cable tray offer high strength as per specification which made them perfect for heavy-duty power distribution in industries, manufactured using pre-galvanized mild steel. These Ladders are available in width ranging from 150mm to 1200 mm and height ranging from 50 mm to 150 mm. Available in standards length of 2500 mm.
| Standard Length | In Standard length of 2.5 mtrs (2500 mm) |
| Width | 50 mm to 1000 mm |
| Thickness | 18swg to 10swg(1.2 mm to 3 mm) |
| Height | 25 mm to 200 mm |
| Perforation | 17.5% avg. |
| Captule holes | 20 x 10 mm |
| Perforation Type | zig zag and straight |
| Length | 2500 mm | 3000 mm |
| Make | Grijal |
| Materials | hot dip galvanized, pre-galvanized, powder coated, stainless steel, painted, ms, aluminium. |

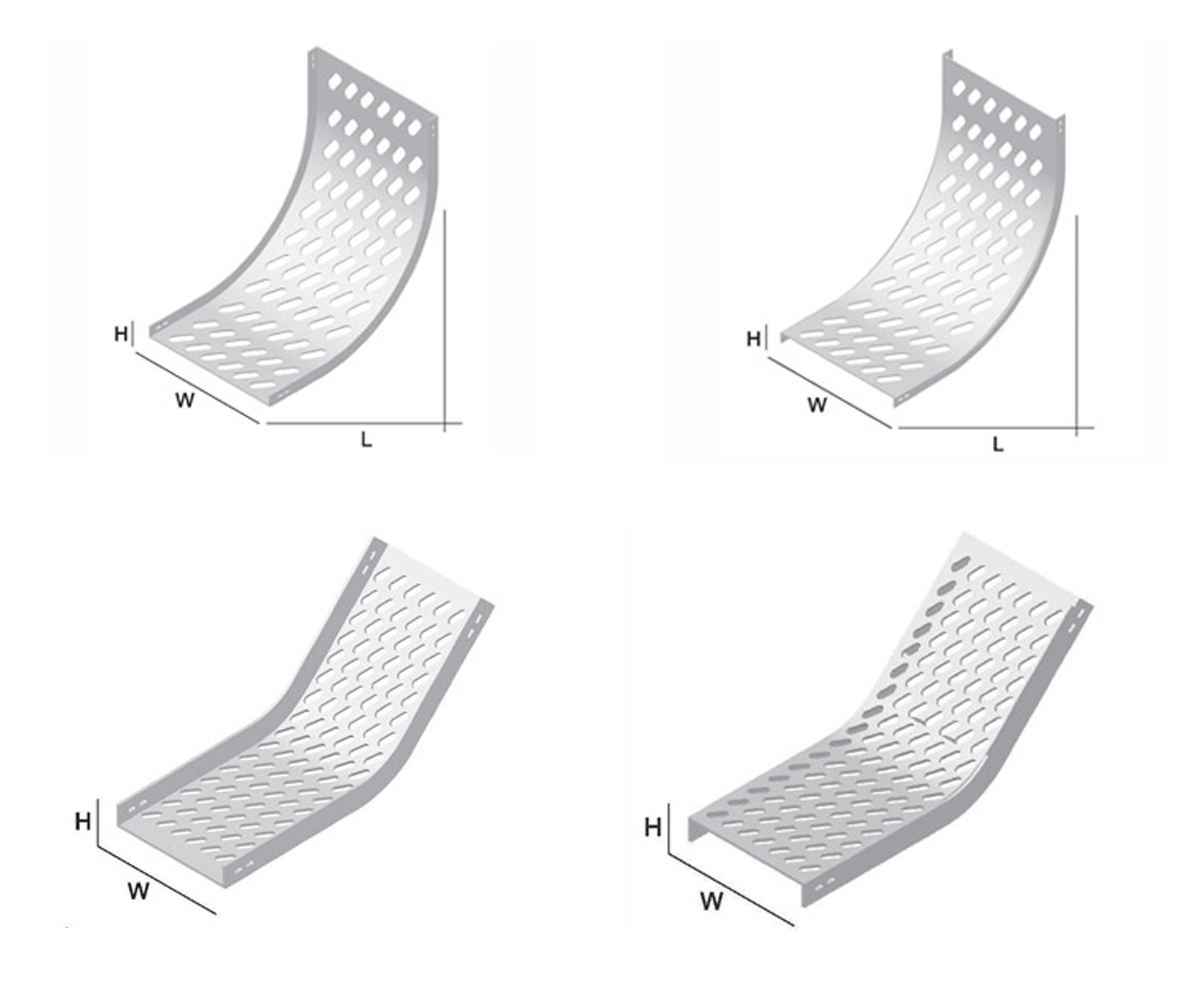

| Accessories | Coupler plates, Gi nut bolts, washers, horizontal/vertical elbows, up/down elbows, inner/outer elbows, tee, reducer, cross./td> |
