Ladder Type Cable Trays And Accessories
Ladder Type Cable Tray are used to distribute cable and has been designed carefully keeping in mind industrial requirements. These trays are manufactured using top quality material and are available in various sizes. We can offer customized solution for all the products
These cable trays also available as Welded Type with high grade galvanized sheet and other materials such as painted and powder coated finish on mild steel. Ladder cable tray offer high strength as per specification which made them perfect for heavy-duty power distribution in industries, manufactured using pre-galvanized mild steel. These Ladders are available in width ranging from 150mm to 1200 mm and height ranging from 50 mm to 150 mm. Available in standards length of 2500 mm.
| Types | Ladder Type Cable Tray (Welded) |
| Strength | Light, Medium & Heavy Duty |
| Raw Material | MS, SS, Aluminum |
| Width | 150 mm - 2000 mm |
| Height | 40 mm - 150 mm |
| Thickness | 1.2 mm –3.0 mm |
| Lengthl | 1000 mm - 3000 mm |
| Finish | Self-Finish, Pre-Galvanised, Hot Dip Galvanising as per IS 2629/4759, Painted (Red oxide, Painted & Powder Coated) |

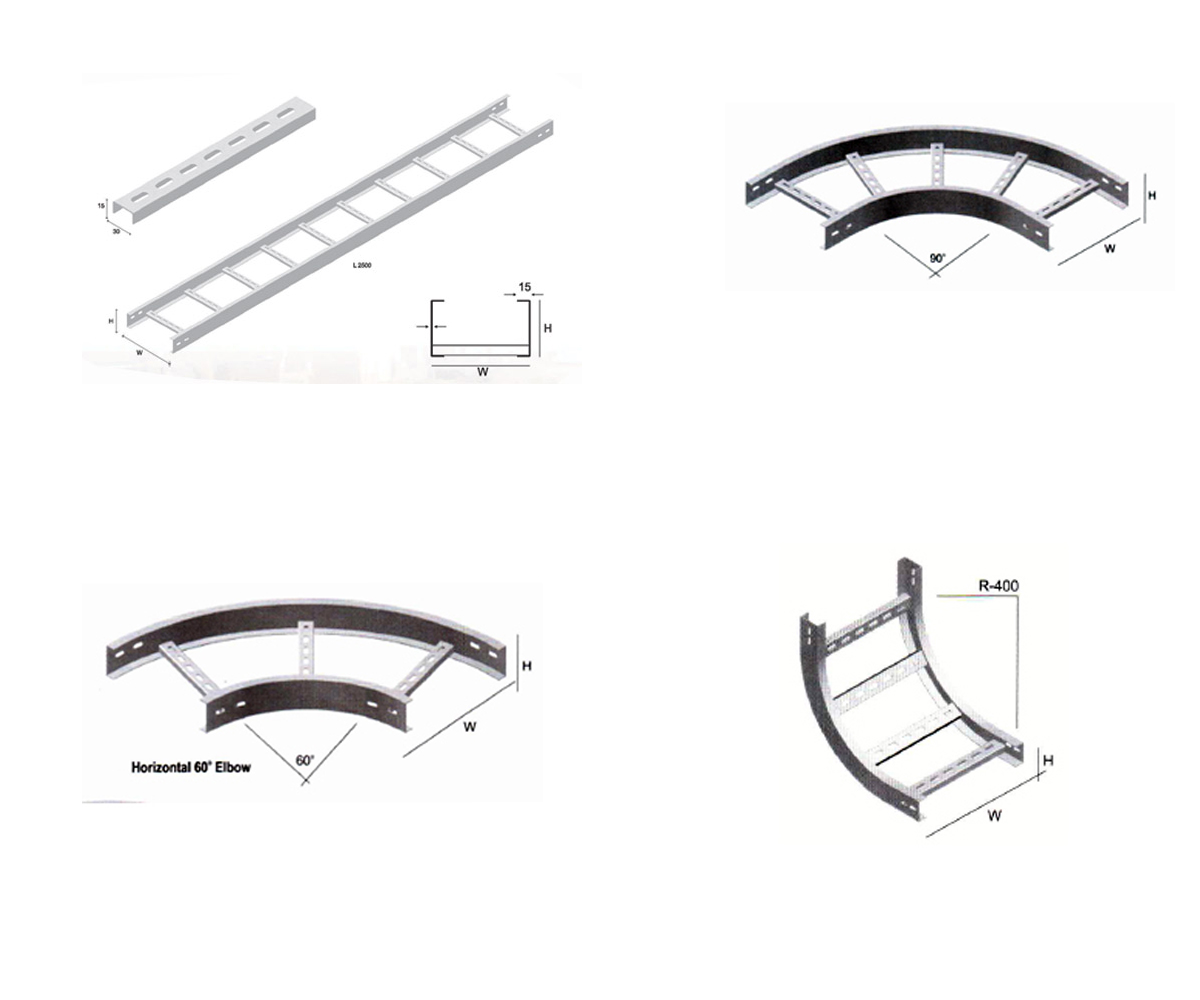

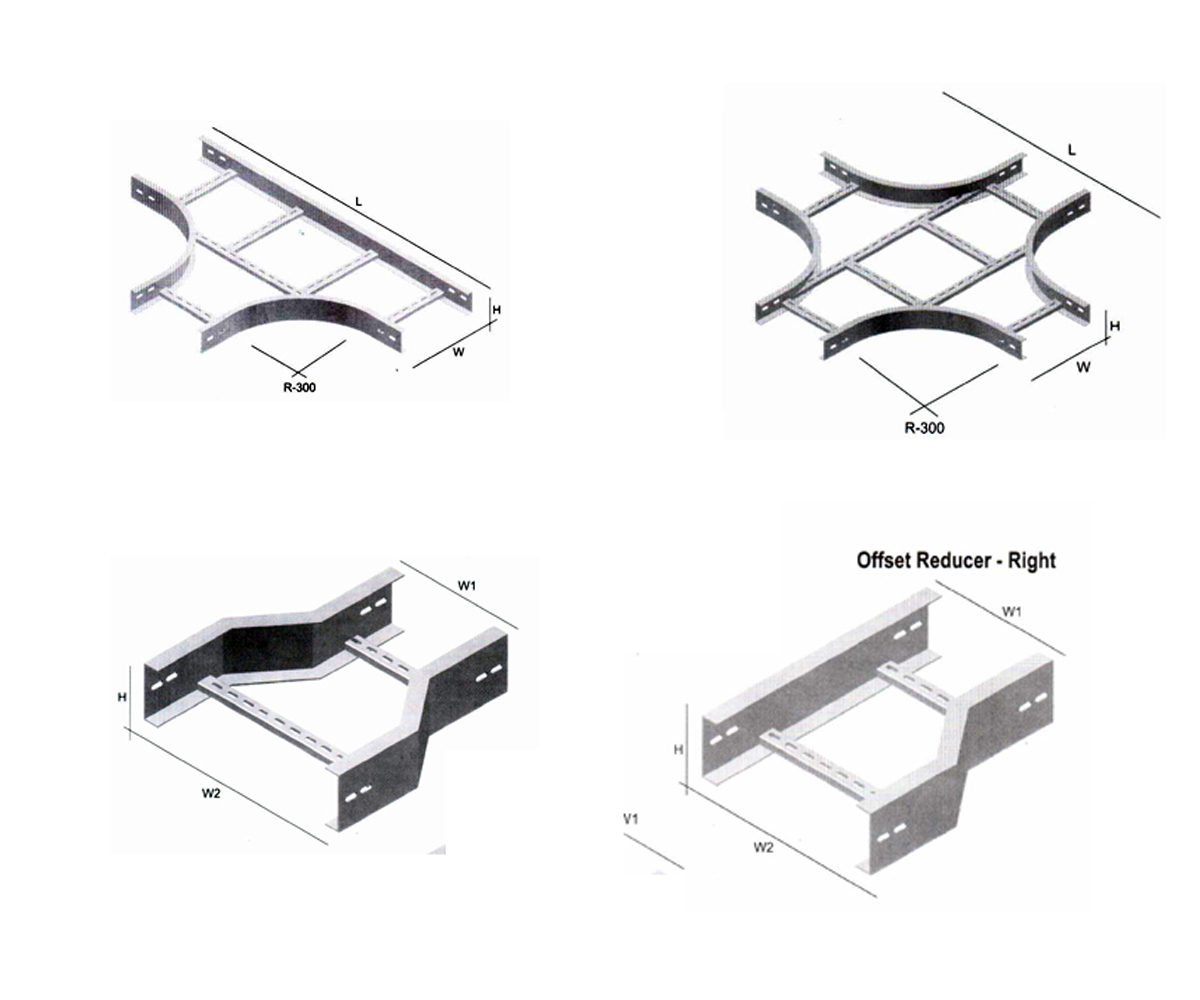

| ACCESSORIES | Coupler plates, gi nut bolts, washers, horizontal/vertical elbows, up/down elbows, inner/outer elbows, tee, reducer, cross. |
